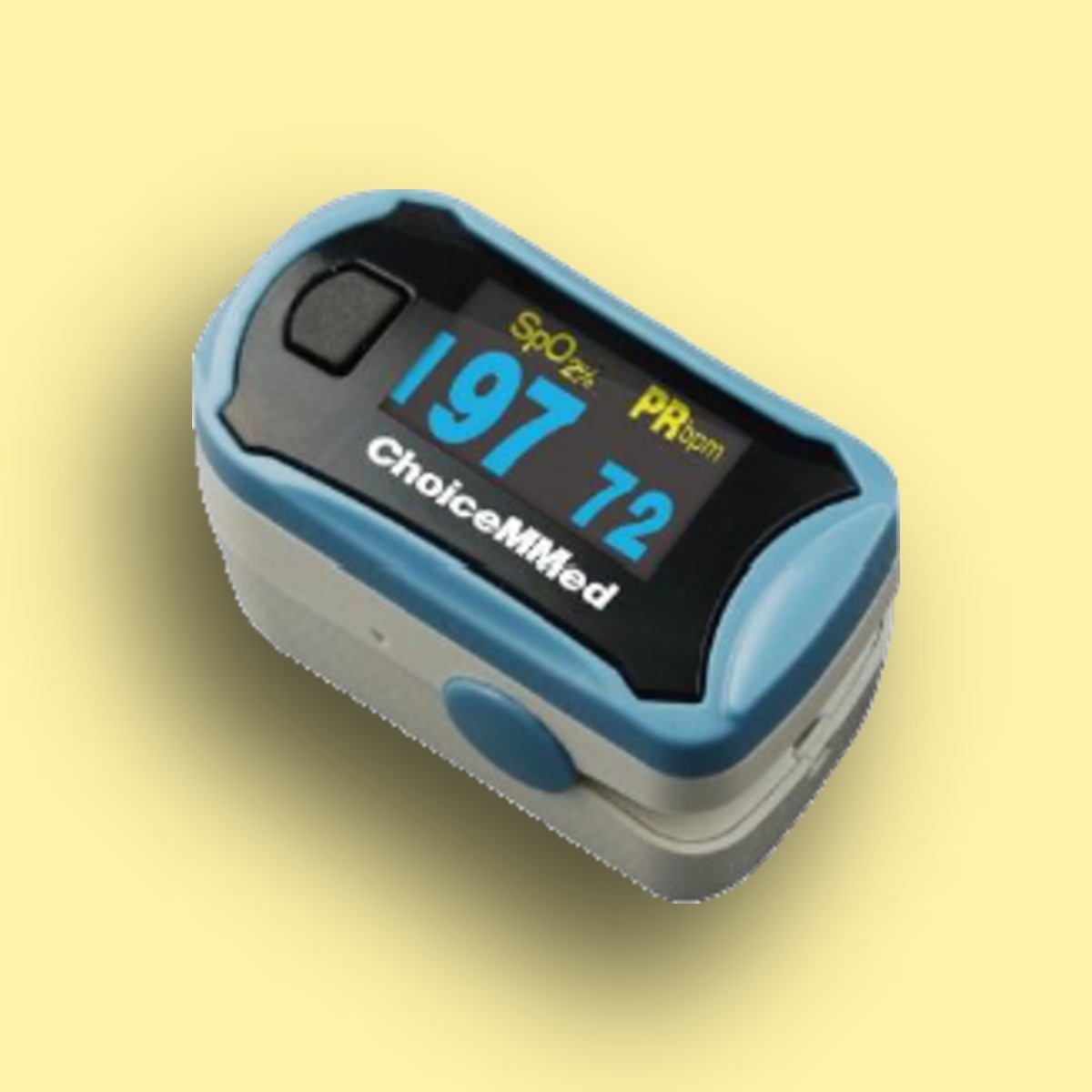

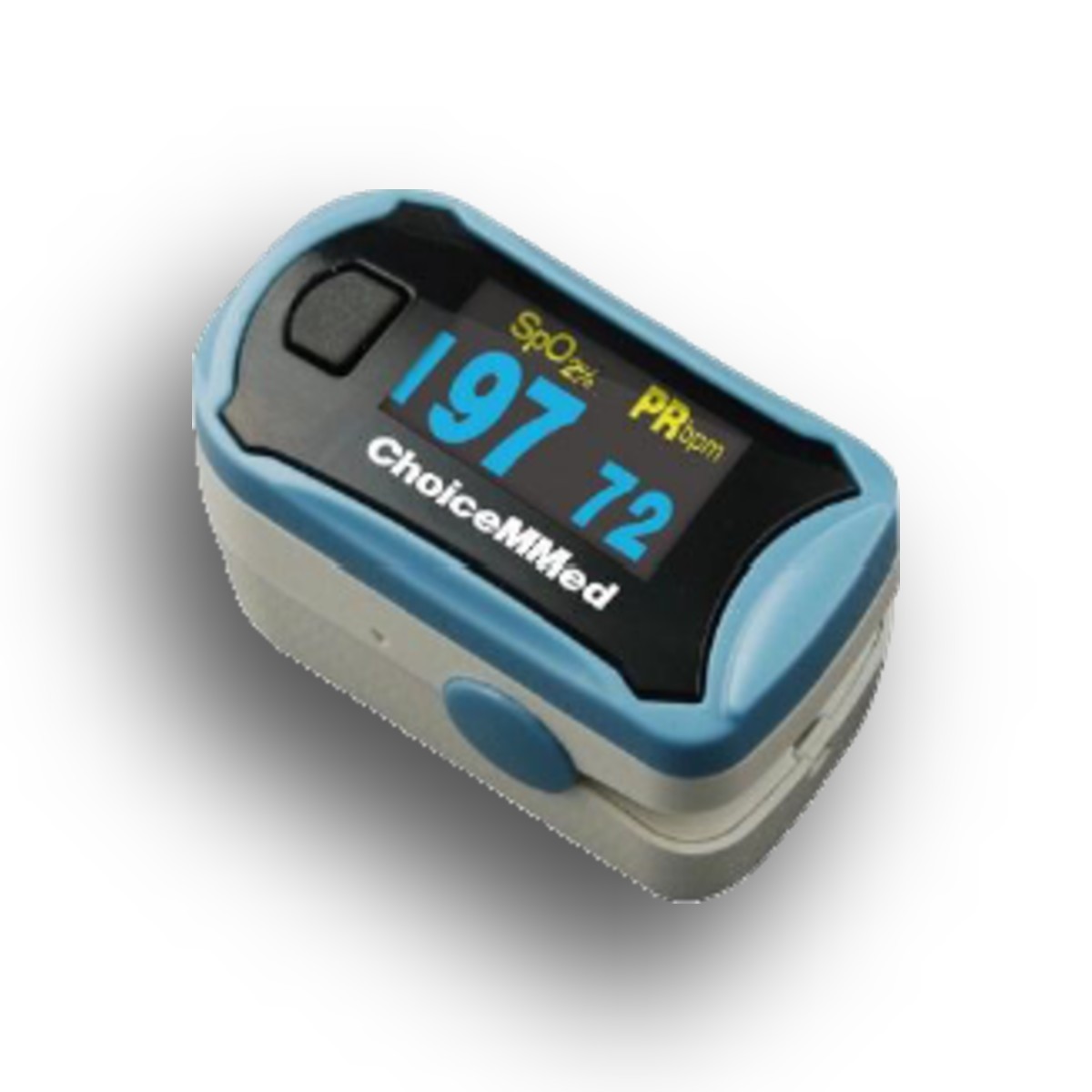

Pulse-Oximeter for adults MD300C29

FINGERTIP PULSE OXIMETER

Pulse oximeter is a very important and common

device to check oxygen saturation (SpO2) and

pulse rate. As a small, compact, simple,

reliable and durable physiological monitoring

device, Fingertip pulse oximeter is widely

applied in clinic, hospital, social medical

organization, and homecare etc.

FEATURES

- Dual color OLED displays SpO2, PR, Pulse bar, and waveform

- Low power consumption; real-time battery status indication

- Level 1-10 adjustable brightness.

- 6 display modes

- 2pcs AAA-size batteries; battery-low indicator

- Automatically power off

- Certification: CE, FDA, CFDA

TECHNICAL SPECIFICATIONS

Application Range

Adult, adolescent and child SpO2 Pulse Rate

Measurement Range:

70%~100%

Measurement Range:

30bpm~250bpm

Resolution:

1%

Resolution:

1bpm

Measurement Accuracy:

70%~100% ±2%;

0%~69% no definition

Measurement Accuracy:

30bpm~99bpm ±2bpm;

100bpm~250bpm ±2% Display Dimensions and Weight

Type:

OLED

Dimension:

58mm (L) * 32mm (W) * 34mm (H)

Parameters:

SpO2, PR, Pulse bar, and waveform

Weight:

50g (including batteries) Power Requirements

Battery:

Two AAA-size 1.5V Batteries

Power Consumption:

Less than 40mA Environment Requirements

Operation Temperature:

5℃~40℃

Operation Humidity:

15%～93% no condensation

Storage Temperature:

-25℃~+70℃

Storage Humidity:

≤93%, no condensation
